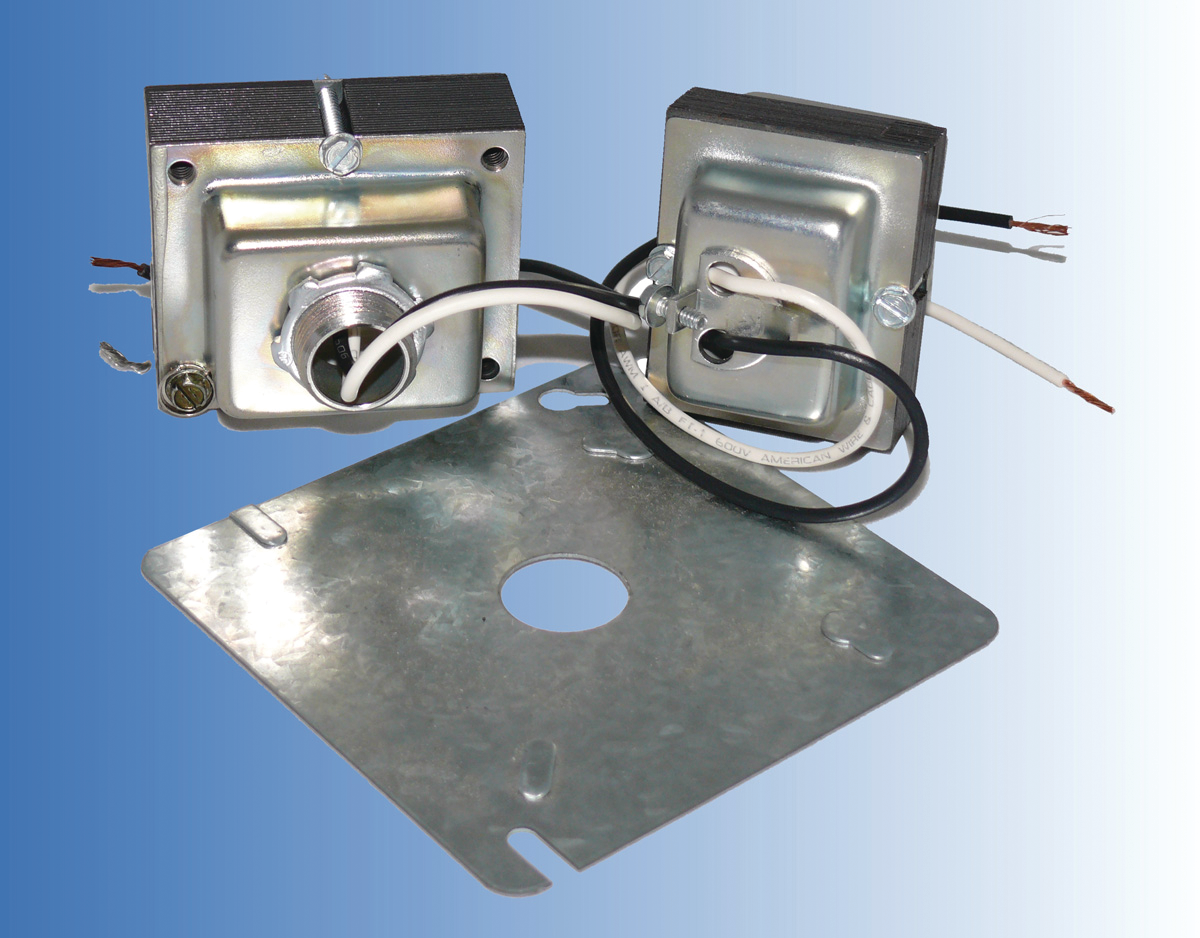

Foster Transformer introduces a pair of transformers for use in many industrial control systems including access control. Transformer models 15951 and 15952 are UL and C-UL listed to UL 5085-3, Class 2 Transformers, and UL 1411 Transformers and Motor Transformers for use with Audio-, Radio, and Television-type appliances.
Both models work from a 115V, 50/60 Hz input and have an output of 16 VAC. The model 15951 is rated 15 VA while the 15952 has a 30 VA rating. When used with a rectifier and filter capacitor these transformers are suitable for 24 VDC control systems. Both transformers are intended for permanent installation and offer a variety of mounting options including clamp, conduit nipple, and outlet box cover plate styles. Low voltage connections are made to a two-position screw terminal for convenient field installation. Information: [email protected].
