4100 Electric Strike

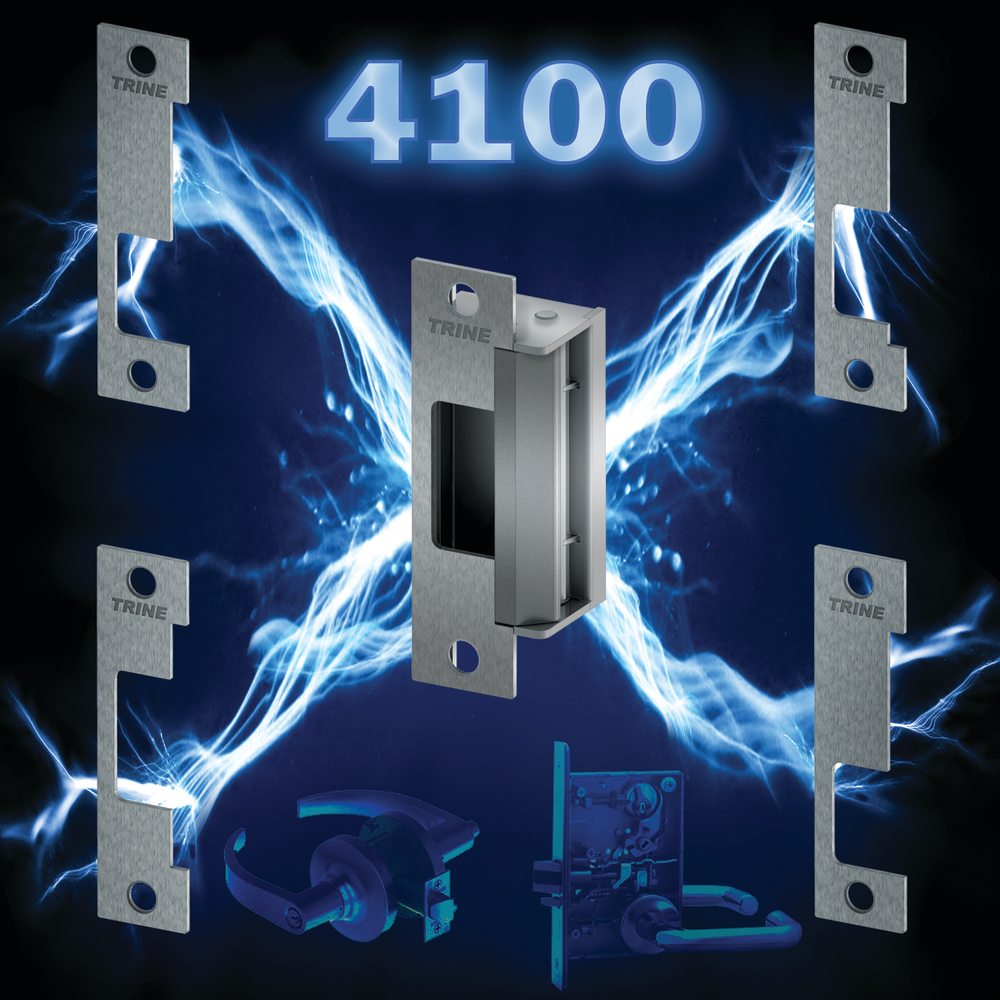

Trine introduces the latest addition to its one-box solution family, the 4100 electric strike.  Used with cylindrical and mortise locksets, the 4100 offers the four most popular faceplate configurations in the box.  These faceplates cover 90 percent of installations without deadbolts. The strike accepts 12/24 and DC 12-24 AC, with a low current draw of .240 Amps at 12DC. A premium trim skirt is included to clean up the cut line because aesthetics matter.  The 1–3/8” shallow backset allows use in 2" fire rated frames with 1/2" sheetrock ingress.  While Grade 1 is met by its 3,250 lbs. holding force and 1,000,000+ life cycles.

More Info: www.trineonline.com.
