2024 Key Machine Encyclopedia, Part 2

When it comes to shopping for a key machine, the choices are almost as varied as the type of locksmithing that the machine is meant to support.

With the rise of internet connectivity, it’s no surprise that most of the newest key machines are automatic and computerized. These models deliver functionality that manual machines simply can’t, including ever-expanding code databases, firmware upgrades and decoding from an image.

However, like everything else, although adding electronics to a key machine delivers features otherwise not possible, those features and the conveniences come with a price. Generally speaking, manual single-function key machines cost significantly less than automatic multifunction, or all-in-one, machines. For the user, a manual or even semi-automatic key machine is a less complicated device.

The Locksmith Ledger Key Machine Encyclopedia is an attempt to list all key machines in production and offered for sale in North America at presstime. This does NOT include the many legacy machines still in use but not available for purchase..

Products are listed in alphabetical order by manufacturer and then divided by the types of keys cut. NOTE: Not all key machines can cut all types of listed keys out of the box. Additional clamps for an additional cost might be necessary.

Manufacturers categorize key machines differently and use different terms to describe their machines and a machine’s features. We have tried to standardize where possible, but always consult the appropriate manufacturer or your favorite distributor if you have specific questions, particularly with regard to keys cut and the terms of a machine’s warranty.

If any errors or omissions are discovered, any updates have been made or models have been discontinued, please contact us at [email protected].

We covered automatic key machines last month. Read that article here: www.locksmithledger.com/53079815.

Framon

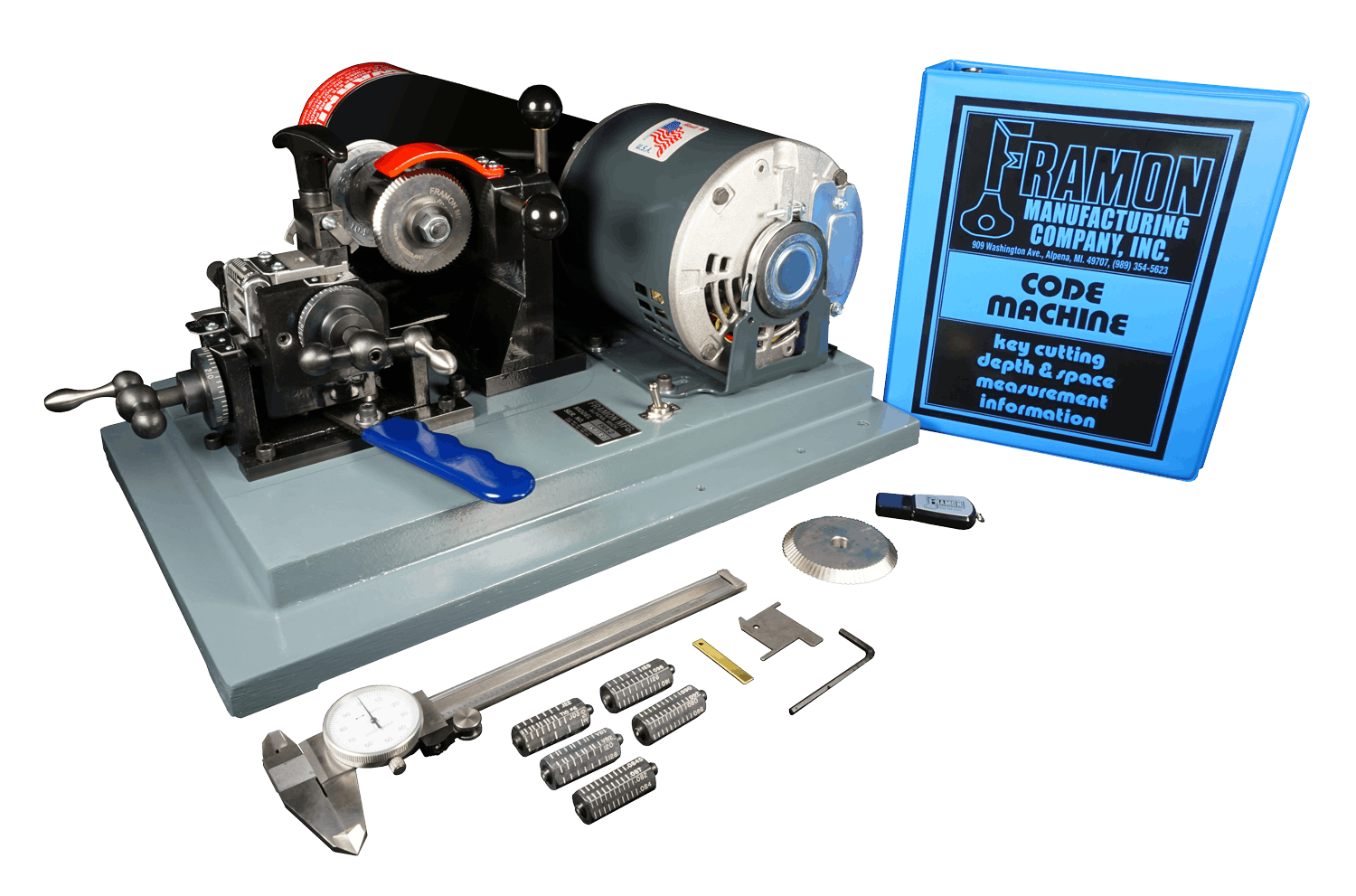

#2

The #2 can originate edge (automotive and residential), bit (padlock and safe-deposit box), high-security and Tibbe keys from code. It includes the latest version of Genericode.

Operation: Manual
Dimensions: 10-1/2 in. (w) x 17 in. (d) x 8 in. (h)
Weight: 36 lbs.
Warranty: 1 yr., freight inc.

#2J

The #2J has been modified to handle detention keys in addition to the keys that are possible on the #2. A special vise helps to clamp the larger keys.

Operation: Manual
Dimensions: 10-1/2 in. (w) x 17 in. (d) x 8 in. (h)
Weight: 36 lbs.
Warranty: 1 yr., freight inc.

DC-300

The DC-300 can originate from code or duplicate automotive edge keys, including motorcycle keys. An additional carbide cutter will allow it to cut steel keys.

Operation: Manual
Dimensions: 16 in. (w) x 10-1/2 in. (d) x 6-1/4 in. (h)
Weight: 33 lbs.
Warranty: 1 yr., freight inc.

KX-1

The KX-1 can code-cut cylinder edge-cut keys but is aimed particularly at high-security keys, including Medeco, Kaba PEAKS and Schlage Primus. The machine is set up to cylinder manufacturer preferences, but additional kits are available.

Operation: Manual
Dimensions: 13 in. (w) x 14 in. (d) x 13 in. (h)
Weight: 33 lbs.
Warranty: 1 yr., freight inc.

MD-1

The MD-1 can duplicate edge cylinder and automotive keys. It can cut keys up to 4 inches long without additional accessories.

Operation: Manual
Dimensions: 12 in. (w) x 15 in. (d) x 16 in. (h)
Weight: 29 lbs.
Warranty: 1 yr., freight inc.

Sidewinder 2

The Sidewinder 2 can originate or duplicate laser keys, including Volkswagen and Audi. Depth and space rods allow for a quick change between code cutting and duplication.

Operation: Manual
Dimensions: 6 in. (w) x 14 in. (d) x 10 in. (h)
Weight: 33 lbs.
Warranty: 1 yr., freight inc.

Sidewinder

The Sidewinder can duplicate laser keys, including Volkswagen and Audi, but also originate side-milled keys. It can be upgraded to a Sidewinder 2 code model.

Operation: Manual
Dimensions: 6 in. (w) x 14 in. (d) x 10 in. (h)
Weight: 33 lbs.
Warranty: 1 yr., freight inc.

TKM-100

The Specialty TKM-100 can originate tubular keys by code. Its self-adjusting collet accepts three key sizes and will cut brass and steel keys.

Operation: Manual
Dimensions: 8 in. (w) x 14 in. (d) x 10 in. (h)
Weight: 33 lbs.
Warranty: 1 yr., freight inc.

DBM-1

The DBM-1 can cut flat steel keys for safe-deposit boxes, lockers and padlocks. It can duplicate blanks up to 3-1/2 inches long.

Operation: Manual
Dimensions: 10-1/2 in. (w) x 16 in. (d) x 6-1/4 in. (h)
Weight: 33 lbs.
Warranty: 1 yr., freight inc.

JD-12

The JD-12 can duplicate detention keys. It’s preset for paracentric keys but can cut mogul keys through a separate kit.

Operation: Manual
Dimensions: 12 in. (w) x 16 in. (d) x 10 in. (h)
Weight: 35 lbs.
Warranty: 1 yr., freight inc.

More info: www.framon.com

HPC

The Original Blitz

The Original Blitz can cut edge keys by code cards, as well as Tibbe and tubular keys as an option. It also can cut high-security keys, including the new Medeco 4.

Operation: Manual
Dimensions: 12 in. (w) x 14 in. (d) x 9 in. (h)
Weight: 35 lbs.
Warranty: 1 yr.

Base Blitz

The Base Blitz is aimed at being a second machine and specific, high-volume use. It doesn’t come with cutters or code cards but can use any of the Blitz cutters from a primary machine.

Operation: Manual
Dimensions: 12 in. (w) x 14 in. (d) x 9 in. (h)
Weight: 35 lbs.
Warranty: 1 yr.

Switch Blitz

The Switch Blitz can cut edge (automotive and residential/commercial), Tibbe or tubular keys by code or as a duplicator. It also can cut high-security keys, including the new Medeco 4, and safe-deposit box keys.

Operation: Semi-automatic
Dimensions: 12 in. (w) x 14 in. (d) x 9 in. (h)
Weight: 39 lbs.
Warranty: 1 yr.

Power Speedex

The Power Speedex can duplicate edge (automotive and residential/commercial) keys as well as flat-steel keys as an option. It can accommodate large-bow keys.

Operation: Semi-automatic
Dimensions: 13 in. (w) x 16 in. (d) x 10 in. (h)
Weight: 25 lbs.
Warranty: 90 days

Premier Speedex

The Premier Speedex can duplicate edge (automotive and residential/commercial) keys as well as flat-steel keys as an option.

Operation: Manual
Dimensions: 12 in. (w) x 14 in. (d) x 8 in. (h)
Weight: 27 lbs.
Warranty: 90 days

Mini Speedex

The lightweight Mini Speedex can duplicate edge (automotive and residential/commercial) keys as well as large-bow keys.

Operation: Manual
Dimensions: 11 in. (w) x 8 in. (d) x 8 in. (h)
Weight: 17 lbs.
Warranty: 90 days

Trace-A-Key

The Trace-A-Key can duplicate a wide variety of edge-cut keys, including longer automotive keys. It has a single-casting construction for durability.

Operation: Semi-automatic
Dimensions: 12 in. (w) x 16 in. (d) x 13 in. (h)
Weight: 29 lbs.
Warranty: 90 days

The Punch Machine

The Punch Machine can cut commercial, residential, automotive and furniture edge-cut keys by code. It can punch only flat-side keys.

Operation: Manual
Dimensions: 10 in. (w) x 13 in. (d) x 7 in. (h)
Weight: 23 lbs.
Warranty: 1 yr.

Tubular Duplicode

The Tubular Duplicode can cut tubular keys by code. It can accommodate left- and right-hand cuts as well as pin within pin.

Operation: Manual
Dimensions: 16 in. (w) x 5 in. (d) x 5 in. (h)
Weight: 11 lbs.
Warranty: 90 days

Tubular Duplicut

The Tubular Duplicut can duplicate standard-size tubular keys. It also can duplicate a key from an HPC Tubular Pick.

Operation: Manual
Dimensions: 16 in. (w) x 5 in. (d) x 5 in. (h)
Weight: 11 lbs.
Warranty: 90 days

Pocket Cut-Up

The Pocket Cut-Up is a pocket-size code cutter for tubular keys.

Operation: Manual
Dimensions: 4 in. (w) x 2 in. (dia.)
Weight: 0.8 lbs.
Warranty: 90 days

More info: www.hudsonlock.com

Ilco / Silca

009B

The 009B can duplicate seven- and eight-cut tubular keys. It includes a key-positioning device.

Operation: Manual
Dimensions: 14 in. (w) x 4-1/4 in. (d) x 4-1/4 in. (h)
Weight: 8 lbs.
Warranty: 2 yrs.

Flash 008

The lightweight Flash 008 can duplicate edge (automotive and residential/commercial) and cruciform keys, including large-bow keys.

Operation: Manual
Dimensions: 12-13/64 in. (w) x 9-29/64 in. (d) x 7-51/64 in. (h)
Weight: 14 lbs.
Warranty: 2 yrs.

Flash Mobile

The lightweight Flash Mobile can duplicate edge (automotive and residential/commercial) keys, including large-bow keys. It’s battery-powered and includes a handle for remote key cutting.

Operation: Manual
Dimensions: 12-39/64 in. (w) x 10-3/64 in. (d) x 10-3/64 in. (h)
Weight: 15.4 lbs.
Warranty: 2 yrs.

Duo Plus

The Duo Plus can duplicate edge (automotive and residential/commercial), cruciform, bit and high-security keys. It allows for free or controlled carriage movement.

Operation: Manual
Dimensions: 20-3/32 in. (w) x 17-23/32 in. (d) x 11-1/32 in. (h)
Weight: 50.7 lbs.
Warranty: 2 yrs.

Speed 044 Semi-Automatic

The Speed 044 Semi-Automatic can duplicate edge (automotive and residential/commercial) and cruciform keys, including large-bow keys.

Operation: Semi-automatic
Dimensions: 22-27/32 in. (w) x 18-1/8 in. (d) x 9/27-32 in. (h)
Weight: 31 lbs.
Warranty: 2 yrs.

Speed 045 Manual

The Speed 045 Manual can duplicate edge (automotive and residential/commercial) and cruciform keys, including large-bow keys.

Operation: Manual
Dimensions: 15-3/4 in. (w) x 18-1/8 in. (d) x 9/27-32 in. (h)
Weight: 31 lbs.
Warranty: 2 yrs.

Bravo III with EZ Jaw

The Bravo III with EZ Jaw can duplicate edge (automotive and residential/commercial) keys, including large-bow keys. It includes a four-position clamp.

Operation: Semi-automatic
Dimensions: 15 in. (w) x 20 in. (d) x 10 in. (h)
Weight: 47 lbs.
Warranty: 2 yrs.

KD50C

The KD50C can duplicate edge (automotive and residential/commercial) and padlock keys, including large-bow keys.

Operation: Semi-automatic
Dimensions: 14 in. (w) x 17-1/2 in. (d) x 11-1/2 in. (h)
Weight: 61 lbs.
Warranty: 2 yrs.

Swift Plus

The Swift Plus can duplicate laser (including Mercedes-Benz, Volkswagen and Audi), dimple and tubular keys. It has a built-in accessories tray.

Operation: Manual
Dimensions: 10-1/4 in. (w) x 11-15/64 in. (d) x 12-13/32 in. (h)
Weight: 26.5 lbs.
Warranty: 2 yrs.

Twister II

The Twister II can duplicate laser, dimple, Tibbe, tubular and Fichet keys.

Operation: Manual
Dimensions: 9-27/32 in. (w) x 14-37/64 in. (d) x 14-37/64 in. (h)
Weight: 53 lbs.
Warranty: 2 yrs.

Matrix II

The Matrix II can duplicate laser and Tibbe keys. It has a built-in accessories tray.

Operation: Manual
Dimensions: 12-7/32 in. (w) x 15-3/4 in. (d) x 18-33/64 in. (h)
Weight: 54.2 lbs.
Warranty: 2 yrs.

Speed 046 Manual

The Speed 046 Manual can duplicate bit (safe and safe-deposit) and flat keys.

Operation: Manual
Dimensions: 15-3/4 in. (w) x 18-1/8 in. (d) x 9/27-32 in. (h)
Weight: 31 lbs.
Warranty: 2 yrs.

Crown

The Crown can duplicate tubular keys of several sizes. It allows for cut-within-a-cut duplication.

Operation: Manual
Dimensions: 9 in. (w) x 18 in. (d) x 7 in. (h)
Weight: 37.5 lbs.
Warranty: 2 yrs.

More info: www.ilco.us

JMA

Vienna

The Vienna can duplicate edge (automotive and residential/commercial) and cruciform keys. Its counter keeps track of the number of keys cut.

Operation: Semi-automatic
Dimensions: 16-15/16 in. (w) x 16-35/64 in. (d) x 11-1/32 in. (h)
Weight: 59.5 lbs.
Warranty: 5 yrs. mechanical

Vienna Smart

The Vienna Smart can duplicate edge (automotive and residential/commercial) and cruciform keys. It has a storage area for accessories.

Operation: Semi-automatic
Dimensions: 16-15/16 in. (w) x 16-35/64 in. (d) x 11-1/32 in. (h)
Weight: 59.5 lbs.
Warranty: 5 yrs. mechanical

Berna and Berma Simply

The Berna can duplicate edge (automotive and residential/commercial) and cruciform keys.

Operation: Semi-automatic/manual
Dimensions: 13-25/64 in. (w) x 17/18 in. (d) x 9-37/64 in. (h)
Weight: 37.5 lbs.
Warranty: 5 yrs. mechanical

Nomad

The lightweight Nomad can duplicate edge (automotive and residential/commercial) and cruciform keys. A safety mechanism will shut down the machine if power is lost.

Operation: Manual
Dimensions: 10-1/2 in. (w) x 6-1/2 in. (d) x 8-1/2 in. (h)
Weight: 14.3 lbs.
Warranty: 5 yrs. mechanical

Ecco Models

The Ecco Plus can duplicate edge and cruciform keys. It has a four-sided jaw.

Operation: Semi-automatic
Dimensions: 20-7/8 in. (w) x 9-21/32 in. (d) x 11-1/32 in. (h)
Weight: 35 lbs.
Warranty: 5 yrs. mechanical

The Ecco Bit can duplicate Tibbe and bit (single- and double-blade) keys. It has an option for wave keys.

Operation: Semi-automatic
Dimensions: 18-1/2 in. (w) x 9-21/32 in. (d) x 11-1/32 in. (h)
Weight: 35 lbs.
Warranty: 5 yrs. mechanical

The Ecco Abloy and the Ecco Ford are specialty machines for the duplication of Abloy keys and the code-based duplication of Ref. 10-6.P keys.

The Ecco RG can duplicate wave keys. It has an option for Tibbe and bit (single- and double-blade) keys.

- Operation: Semi-automatic
- Dimensions: 18-1/2 in. (w) x 9-21/32 in. (d) x 11-1/32 in. (h)
- Weight: 35 lbs.
- Warranty: 5 yrs. mechanical

CAPRI / CAPRI Smart

The CAPRI can duplicate laser, dimple and tubular keys. It has a top tray for accessories. CAPRI Smart is the new duplicator for security, sidewinder and specialty keys, It is a simpler version of the CAPRI.

Operation: Manual
Dimensions: 16-15/16 in. (w) x 15-11/64 in. (d) x 18-5/16 in. (h)
Weight: 55.1 lbs.
Warranty: 5 yrs. Mechanical

Saratoga

The Saratoga can duplicate flat keys (cylinder and auto) and cruciform keys.

Operation: Semi-automatic
Dimensions: 590 by 260 by 470 mm
Weight: 43 kg.

Volga

This machine can cut single- or double-bit mortise keys as well as forward-cut keys and those with vertical cuts.

Operation: Semi-automatic
Dimensions: 370 by 260 by 460 mm
Weight: 26 kg.

More info: www.jmausa.com

Keyline USA

106

The 106 can duplicate edge (automotive and residential/commercial), padlock and cruciform keys. It has an optional carbide cutter.

Operation: Semi-automatic
Dimensions: 18 in. (w) x 15 in. (d) x 17 in. (h)
Weight: 55 lbs.
Warranty: 2 yrs.

T-Rex

The T-Rex can duplicate laser (including Volkswagen and Audi), dimple, Tibbe and tubular keys.

Operation: Semi-automatic
Dimensions: 12-39/64 in. (w) x 16-35/64 in. (d), 18-45/64 in. (d) w chip tray x 19-19/64 in. (h)
Weight: 52.9 lbs.
Warranty: 2 yrs.

T-Rex Plus

The T-Rex Plus can duplicate laser (including Volkswagen and Audi), dimple, Tibbe and tubular keys. Its tilting clamp allows for cutting dimple keys without additional accessories.

Operation: Semi-automatic
Dimensions: 12-39/64 in. (w) x 16-35/64 in. (d) , 18-45/64 in. (d) w chip tray x 19-19/64 in. (h)
Weight: 52.9 lbs.
Warranty: 2 yrs.

T-Rex Advance

The T-Rex Advance can duplicate laser (including Volkswagen and Audi), dimple, Tibbe and tubular keys. Its tilting clamp allows for cutting dimple keys without additional accessories, and it has motorized tool positioning.

Operation: Semi-automatic
Dimensions: 12-39/64 in. (w) x 16-35/64 in. (d), 18-45/64 in. (d) w chip tray x 19-19/64 in. (h)
Weight: 55.1 lbs.
Warranty: 2 yrs.

303

The 303 can duplicate laser, dimple and Tibbe keys. It includes a storage tray for accessories.

Operation: Semi-automatic
Dimensions: 12 in. (w) x 15 in. (d) x 21 in. (h)
Weight: 51 lbs.
Warranty: 2 yrs.

Arcadia

The Arcadia can cut tubular keys for a wide range of brands. It has a built-in clamp-storage compartment.

Operation: Manual
Dimensions: 8-1/4 in. (w) x 15-3/4 in. (d) x 8-1/4 in. (h)
Weight: 28 lbs.
Warranty: 2 yrs.

Falcon

The Falcon can cut Tibbe keys by code. Optional clamps allow it to cut high-security keys.

Operation: Manual
Dimensions: 15-3/4 in. (w) x 14-1/2 in. (d) x 9 in. (h)
Weight: 38 lbs.
Warranty: 2 yrs.

Punto

The newly redesigned Punto duplicates high security laser and dimple keys. Optional equipment includes a Mercedes 2-track adapter kit, Audi/VW adapters and dimple cutter and tracer set.

More info: www.keyline-usa.com

Kukai

SEC-M10

The lightweight SEC-M10 can duplicate automotive and residential/commercial edge-cut keys.

Operation: Manual
Dimensions: 12-51/64 in. (w) x 8-43/64 in. (d) x 9-29/64 in. (h)
Weight: 13.9 lbs.
Warranty: 1 yr.

More info: www.uhs-hardware.com

Mul-T-Lock

Compact II

The Compact II can cut by code Mul-T-Lock keys for the Classic and Interactive+ (MTL600) series. It cuts to original manufacturer specifications.

Operation: Manual
Dimensions: 9-21/32 in. (w) x 13-63/64 in. (d) x 12-7/8 in. (h)
Weight: 45 lbs.
Warranty: 2 yrs.

More info: www.mul-t-lock.com/en-us

PRO-LOK

Blue Punch Key Machine

The lightweight Blue Punch Key Machine can cut brand-dedicated keys to original specifications. Each machine is preset to handle one or two brands, and 21 different models are available.

Operation: Manual
Dimensions: 4 in. (w) x 12-1/2 in. (d) x 8-1/2 in. (h)
Weight: 12 lbs.
Warranty: 90 days

More info: www.pro-lok.com

Xhorse

DOLPHIN XP-007

The DOLPHIN XP-007 can duplicate automotive edge, laser, dimple and Tibbe keys. It’s battery-powered and includes a handle for remote key cutting.

Operation: Manual
Dimensions: 9-23/32 in. (w) x 11-7/64 in. (d) x 13-63/64 in. (h)
Weight: 30.9 lbs.
Warranty: 1 yr.

DOLPHIN XP-008

The DOLPHIN XP-008 can duplicate flat and bit keys. It’s powered by a 22.2-volt rechargeable battery and has a carry handle.

Operation: Manual
Dimensions: 12-1/64 in. (w) x 7-19/64 in. (d) x 7-51/64 in. (h)
Weight: 23.8 lbs.
Warranty: 1 yr.
