Probably one of the most confusing areas of locksmithing is servicing large trucks and semis. Most of these vehicle manufacturers are not associated with car manufacturers and may not have specific time or production changes. To make servicing these vehicles even more challenging, most of the manufacturers use off-the-shelf locks and most have custom coined keys with their names or logos. As of the latest information, only a couple of manufacturers have chosen to add engine immobilizers to their trucks.
Because these vehicles are using off the shelf locks, most of the key blanks are also available as generics. A generic key blank will have a very similar if not the same blade shape. If replacement key blank has wider grooves, this weakens the blade as the key does not properly fill the keyway of the lock. This can result in the key breaking prematurely.
In addition, a generic key blank may have a different shape key head and the shank may be a different length. Many truck drivers want Original Equipment, logo keys. In this article, we will attempt to provide Original Equipment and aftermarket part number options.
An additional variation is customized lock keyways. The lock manufacturer removes the millings from within the keyway and provides a solid blade key. The solid blade key will withstand more abuse before wearing out or breaking.
Two examples are the Isuzu truck locks having the N5001-N7000 code series and the Mitsubishi truck locks having the E5001-E7679 code series. A similar Isuzu key with millings is the Ilco X184/B65 key blank. This key blank can be used to operate the Isuzu trucks. The only known aftermarket key blank manufacturers who sell the non-milled key blanks are Silca with blank number ISU2 or JMA with blank number ISU-1. The Mitsubishi locks can be operated with milled blanks such as the Ilco X176/MIT1.The only known non-milled key blanks are the Silca blank MIT15AP or JMA blank MIT-15P.
To further complicate matters, secondary locks can be operated by different key blanks including IN8, Y12 and CG16.
For this article, we only included the code series for ignition and door locks.
Our chart lists the available key blank number using Jet Hardware, JMA USA, Kaba-Ilco and STRATTEC. Silca key blank numbers will be included where appropriate.
Be careful when ordering key blanks for these vehicles. Make sure you know the key blank manufacturer as aftermarket manufacturers can have different part numbers for the same key blank. For example Hino trucks using the 73000-73999 code series use the Ilco HN3 and the Barnes HN-1 key blanks.
For those locksmiths who are interested in the generic, no logo key blanks, see the following list.
1098PB is the same as the H1098DB/B16
1630-P is the same as the 1190LN/H60
1628 is the same as the Y159
1629 is the same as the Y159
For more information, contact your local locksmith distributor or the following manufacturers.
Jet Hardware Manufacturing Corp., 800 Hinsdale Street, Brooklyn, NY 11207. Web Site: www.jetkeys.com.
JMA USA, 1513 Geenview Drive, Grand Pairie, TX 75050. Telephone: 817-385-0515. Web Site: www.jmausa.com.
Kaba Ilco Corp., 400 Jeffreys Road, Rocky Mount, NC 27804. Telephone: 800-334-1381. Web Site: www.kaba-ilco.com/key_systems.
STRATTEC Security Corporation, 3333 West Good Hope Rd., Milwaukee, WI 53209. Telephone: 414-247-3333. Web Site: http://aftermarket.strattec.com.
Chart 1. Key Blank Numbers
Make Key Code Ilco EZ Jet Hardware JMA USA OE/STRATTEC
Autocar
D225-D814 RA4 RA4 AMM-3 321148
N225-N814 RA4 RA4 AMM-3 321148
Bering
H0001-H1000 HY4 HY4 HY-3 ---
Bluebird
LS --- --- --- Silca GHE5
Brockway
H0601-H1100 B1 B1 BS-10 322727
Chevrolet/GMC
S000A-S999K B102 B102-NP GM-39 598007
J/K001-J/K999 B44 B44 GM-8 320404
L/M001-L/M999 B45 B45 GM-12 320405
A/B001-A/B999 B50 B50 GM-7 320652
C/D001-C/D999 B51 B51 GM-11 320653
Diamond Reo
H0601-H1100 B1 B1 BS-10 322727
H0601-H0850 B4 B4 BS-10 322727
Key Blank Numbers
Make Key Code Ilco EZ Jet Hardware JMA USA OE/STRATTEC
Ford
0001X-1706X H75 H75 FO-15D 597638
0001X-1706X H72-PT H72-PHT TP02FD-15DP 598333
E2001-E3000 RV4 --- NE-52` ---
FT101-FT225 62FT --- UN-FT ---
E2001-E3000 RV4 --- NE-52 ---
WR3000-WR3999 WB2 --- --- ---
Freightliner
FL001-FL262 1588 Y159 FRE-1 597893
Z001-Z262 1629 Y159 FRE-1.P 597893
Z001-Z262 Y159 Y159 CHR-15 597893
FL001-FL262 1628-P Y159 FRE-1 597893
FT1001-FT3000 Y159 Y159 CHR-15 597893
D225-D814 RA4 RA4 AMM-3 321148
N225-N814 1584 RA4 AMM-3 321148
H0601-H1100 B1 B1 BS-10 322727
GMC (Isuzu)
N5001-N7000 B65 B65-NP GM-5 ---
A8001-A9400 B57 --- ISU-2 ---
S8001-S9000 B54 B54-NP DAT-6D ---
Hino
ES0001-ES7700 MIT1 MIT1-NP MIT-12 ---
G0001-G2377 TR40 TR40-NP TOYO-20D ---
K0001-K4570 TR33 TR33-NP TOYO-12 692077
73000-73999 HN3 --- --- ---
International
K0001-K1000 RA4 RA4 AMM-3 322727
Key Blank Numbers
Make Key Code Ilco EZ Jet Hardware JMA USA OE/STRATTEC
Isuzu
80,000-80,999 B113 --- --- ---
Silca ISU2 (no grooves) N5001-N7000 B65 B65-NP GM-5 ---
Silca ISU2 (no grooves) N5001-N7000 B65 B65-NP GM-5 ---
A8001-A9400 B57 ISU-2 ---
A8001-A9400 B53 B53-NP GM-2 ---
S8001-S9400 B54 B54-NP DAT-6D ---
C6001-C7042 DC3 DC3-NP MIT-2I ---
Iveco
A501-A3278 NE19 --- AF-7I ---
1501-1900 FT37 FT37-NP IMS-5 ---
3501-3900 FT38 FT38-NP IMS-3 ---
RO1001-RO2000 LF17 LF-RO ---
Kenworth
G101-G598 K1994 --- KEN-2D 596807
C250-C499 B5 B5 AMM-4 320734
FH0001-FH2000 NE48 --- NE-11 ---
E2001-E3000 RV4 --- NE-52 ---
FB001-FB210 V32 V32FB FO-PN ---
Mack
E/N001-E/N100 NE10 --- BH-1 ---
A4AA-A4JZ R62UC --- RO-4I ---
M000-M221 B1 B1 BS-10 322727
H601-H850 B4 B4 BS-11 322727
Magirus
EMNU001-EMNU1000 NE10 --- BH-1 ---
A4AA-A4JZ R62UC --- RO-4I ---
Marmon
H601-110 B4 B4 BS-11 322727
Key Blank Numbers
Make Key Code Ilco EZ Jet Hardware JMA USA OE/STRATTEC
Mercedes Benz
MV0001-MV1000 CR4R --- ME-1 ---
Mitsubishi/Fuso
E5001E7679 MIT1 MIT1-NP MIT-11D ---
8100-9113 FU2 MIT1-NP MIT-11D ---
Navistar – International
K0001-K1000 RA4 RA4 AMM-3 321148
L0001-L1000 RA3 RA3 AMM-2 321487
Nissan (UD)
X0001-X8000 DA25 DA25 DAT-12 692059
Oshkosh
D225-D814 RA4 RA4 AMM-3 321148
CD225-CD814 RA4 RA4 AMM-3 321148
Peterbilt
G101-G598 K1994 --- KEN-2D 597915
FH0001-FH2000 NE48 --- NE-11 ---
E2001-E3000 RV4 --- NE-52 ---
FB001-FB210 V32 V32FB FO-PN ---
C250-C499 B5 B5 AMM-4 1098PB
Provost
PS --- --- GH-PS ---i
FA0001-FA1863 H51 H51 FO-21D 321207
FB0001-FB1863 H50 H50 FO-19 321202
Key Blank Numbers
Make Key Code Ilco EZ Jet Hardware JMA USA OE/STRATTEC
Sterling Truck
E8000-E8999 NE48 --- NE-11 ---
RO1001-RO2000 LF17 --- LF-RO ---
AK0001-AK1000 FC7 FC7 FO-E/TC ---
M0001-M2618 Y164-PT Y165-PHT TP12CHR-15.P 692352
A-B-C-D-E H60 H60 FO-11D 321645
FA0001-FA1863 H51 H51 FO-21D 321207
FB0001-FB1863 H50 H50 FO-19 321202
FT101-FT225 62FT --- UN-FT ---
E2001-E3000 RV4 --- NE-52 ---
Vanhool
Unknown ZD14RP --- ZA-13P ---
Western Star
D225-D814 RA4 RA4 AMM-3 321148
CD225-D814 RA4 RA4 AMM-3 321148
H0601-H1100 B1 B1 BS-10 322727
White-GM-Volvo
VN0000-VN2000 Y159 Y159 CHR-15 692351
DH6001-DH8000 S60HF-P HU-DH.P ---

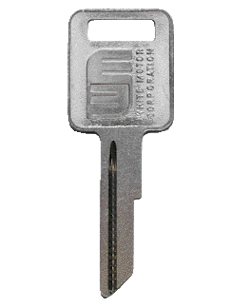

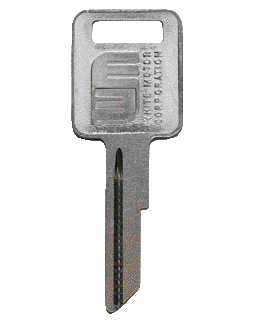

N225-N814 RA4 RA4 AMM-3 320886
D225-D814 RA4 RA4 AMM-3 320886
K001-K999 RA4 RA4 AMM-3 320886
L001-L999 RA3 RA3 AMM-2 ---
1A000-5A745 VL6 VL6 NE-12 ---
H601-H850 B4 B4 BS-11 322727
